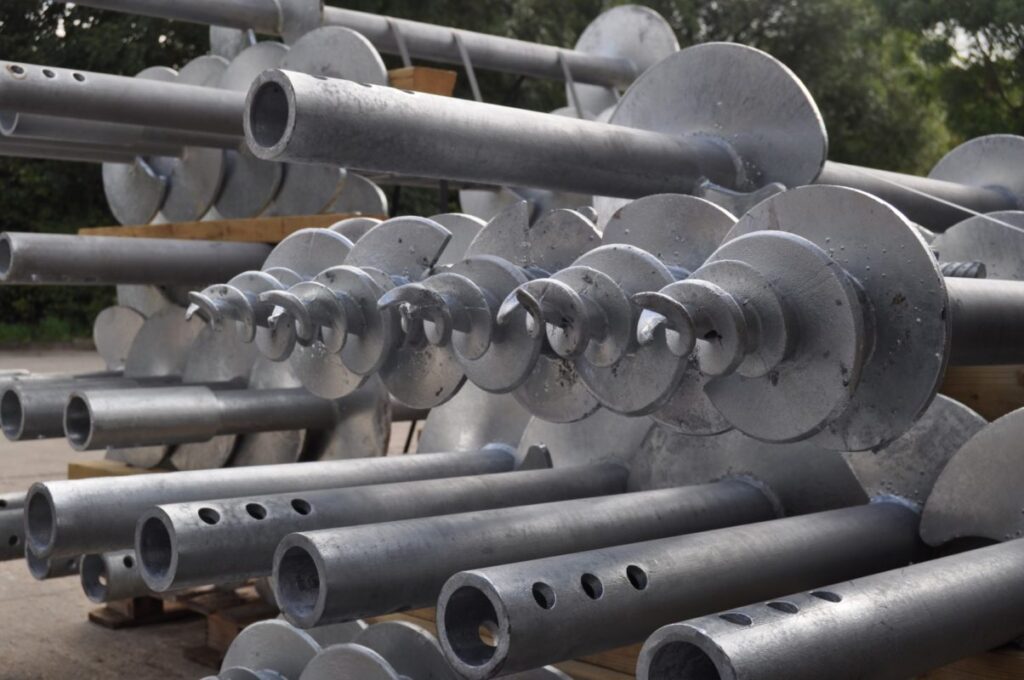

Screw piles, also known as helical piles, are a proven foundation technology that provides structural support by transferring loads deep into the ground. They consist of a steel shaft with one or more helices (helical plates) welded to it. These helices allow the pile to be screwed into the ground, providing both tensile and compressive load capacity without significant soil displacement.
How Screw Piles Work
Screw piles operate by utilizing torque during installation. The pile shaft transfers structural loads through the helices into the stable soil layers. The steel shaft resists both compression and tension forces, ensuring long-term stability.
Key components include:
- Steel shaft: Resists structural forces.
- Helical plates: Distribute load through the soil.
Attributes affecting performance:
- Material: Galvanised steel enhances durability.
- Helix size: Larger diameters for softer soils.
- Installation speed: Faster compared to traditional piling.
Why Screw Piles Are Effective
Screw piling offers several advantages over traditional methods, making it an ideal choice for modern construction projects:
- Rapid installation with minimal site disturbance.
- Applicability across various soil types including clay, silt, and sand.
- Suitability for restricted-access sites.
- Environmentally sustainable with reduced soil displacement.
- Cost-effective in both material and labour.
- Functional in diverse weather conditions.
- Removable and reusable for temporary structures.
Applications of Screw Piles
Screw piles serve a wide range of construction needs:
In urban areas with limited space, screw piles can be installed without heavy machinery, ensuring project feasibility.
Factors Affecting Performance
Several critical factors influence the load capacity and effectiveness of screw piles:
- Soil Composition: Clay, silt, and sand behave differently under load.
- Moisture Content: High moisture reduces soil friction and bearing capacity.
- Helix Size and Shape: Larger helices increase load-bearing surface area.
- Pile Length and Depth: Deeper piles reach more stable strata.
- Installation Torque: Higher torque improves load resistance.
Comparison to Traditional Piling
The table below summarises the differences:
Feature | Screw Piles | Traditional Piles |
|---|---|---|
Installation Time | Rapid, no curing needed | Slow, curing required |
Soil Disturbance | Minimal | Extensive |
Cost | Lower | Higher |
Load Capacity | Light to moderate | Moderate to heavy |
Environmental Impact | Low | High |
Equipment | Light torque equipment | Heavy machinery |
Reusability | Reusable | Permanent |
Usability in Wet Soil | Effective | Limited |
Types of Screw Piles
Screw piles vary based on design and application:
Type | Description | Suitable Application |
|---|---|---|
Small Diameter | For light structural loads | Residential buildings |
Large Diameter | For high load requirements | Bridges, commercial structures |
Tension Piles | Designed for uplift resistance | Wind turbines, anchoring systems |
Compression Piles | Focused on compressive loads | Heavy industrial structures |
Soil Conditions Impact
Understanding soil behaviour is essential for successful screw pile installation:
- Clay: High resistance; requires larger helices.
- Sandy Soils: Prone to shifting; requires deeper installation.
- Silt: Moderate stability; needs careful design.
- Mixed Soils: Requires site-specific soil analysis.
Scientific studies confirm that screw piles excel in mixed and unstable soils, offering a versatile foundation option.
Sustainability Considerations
Screw piling is inherently sustainable due to:
- Minimal soil disturbance.
- Reduced emissions from limited machinery use.
- High durability of galvanised steel.
- Reusability and low environmental impact during removal.
These factors make screw piles a preferred solution for environmentally conscious projects.
