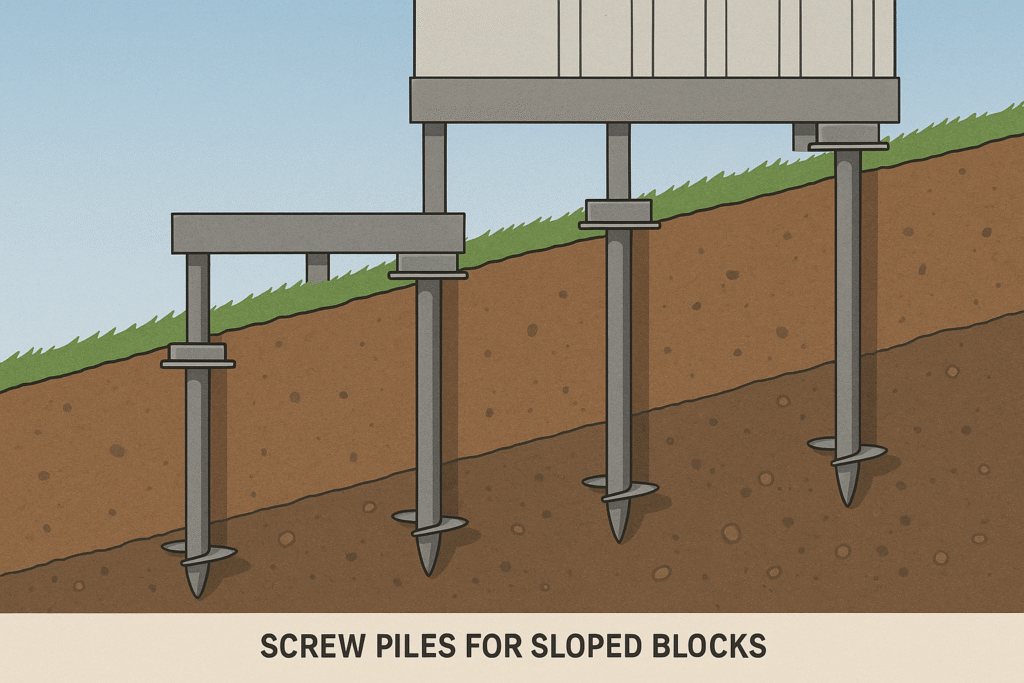

Building on sloped or uneven land presents significant structural and logistical challenges. Traditional foundation methods often require extensive excavation, retaining walls, and increased project costs. Screw piles offer a specialized solution by delivering deep anchorage and adaptability across diverse soil conditions with minimal site disturbance.
Screw Pile Benefits

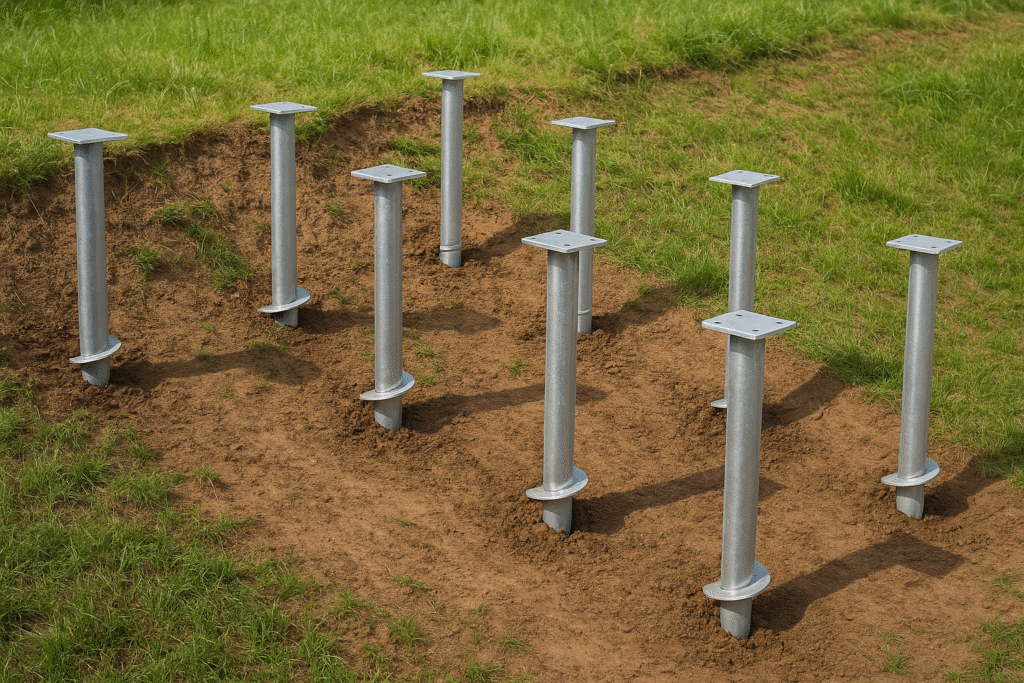

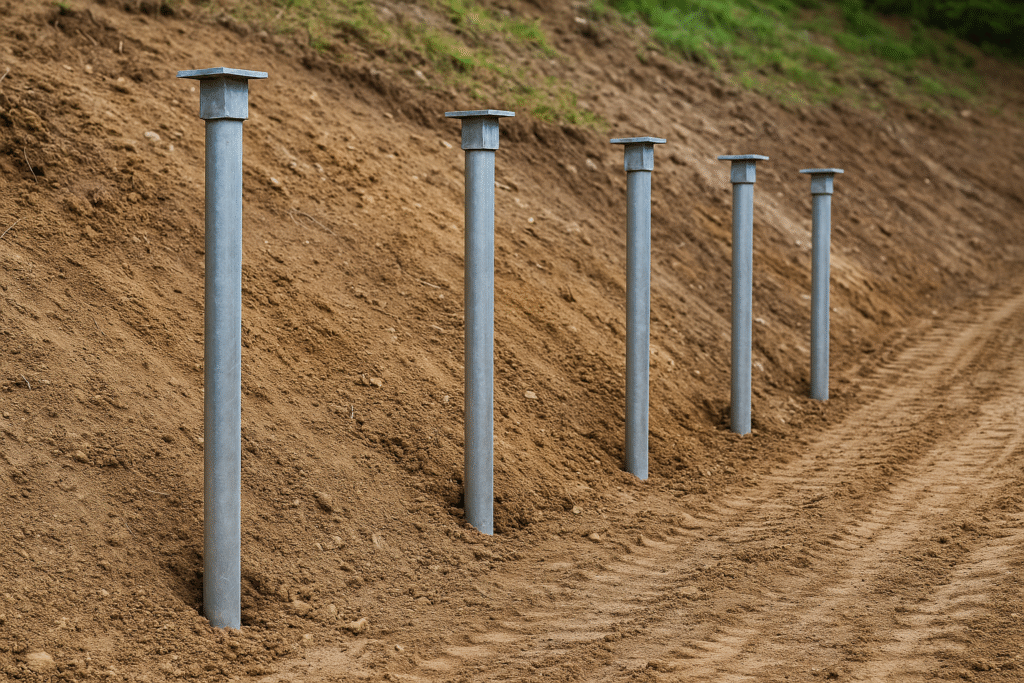

Screw piles are steel shafts with helical plates that are mechanically advanced into the ground, creating a stable foundation. Unlike driven piles or poured foundations, screw piles displace less soil and do not require curing time, allowing immediate construction.
Screw piles offer several key benefits when building on sloped or uneven land:
- Reduced Excavation: Screw piles require significantly less earthmoving, preserving natural contours and minimizing erosion risks.
- Cost Efficiency: Faster installation with fewer heavy machines lowers labor and equipment expenses.
- Environmental Preservation: Lower impact on local ecosystems and reduced concrete use align with sustainable construction practices.
- Load Versatility: Suitable for light structures like decks and heavy structures such as multilevel homes.
- Design Flexibility: Customizable shaft lengths and helix configurations meet a wide range of site-specific needs.
Applications
Screw piles are effective across various applications on sloped and uneven land, including:
- Residential Housing: Foundations for new homes where terrain variability is high.
- Retaining Systems: Anchoring support for retaining walls to manage soil movement.
- Decks and Outdoor Structures: Foundations for decks, verandas, gazebos, and pedestrian bridges.
- Temporary Installations: Foundations for temporary facilities that require easy removal and site restoration.
- Commercial Developments: Foundations for small commercial buildings, especially in remote or inaccessible locations.
Key Considerations
Proper planning and execution are crucial when implementing screw pile foundations on sloped blocks. The following areas must be addressed:
Soil Assessment
Detailed geotechnical evaluation determines the soil’s bearing capacity, identifying potential challenges such as expansive clays, loose fills, or rock outcrops. Torque requirements and pile design specifications are derived from this analysis.
Drainage Planning
Effective drainage systems are essential to prevent water pooling and erosion around the foundation. Solutions such as retaining swales, subsoil drains, and surface water redirection must be integrated into the project design.
Load Calculations
Engineering calculations must address both axial loads (vertical forces) and lateral loads (horizontal forces) exerted by the slope. Appropriate pile embedment depths and diameters are specified to resist these forces without excessive displacement.
Installation Accuracy
Precise installation techniques ensure that piles maintain vertical alignment despite the terrain’s inclination. Torque monitoring during installation confirms that design load capacities are achieved.
Regulatory Compliance
All screw pile installations must comply with local building codes and engineering standards. Structural certifications and inspections are often required for approval.
Design and Engineering Requirements
Design considerations include determining pile size, helix diameter, spacing, and corrosion protection based on environmental exposure. For sloped sites, engineers may recommend battered piles (angled piles) to counteract lateral earth pressures.
Advanced software modeling tools assist in predicting pile behavior under load, particularly in complex soil strata or when slope stability is a concern. These models help optimize pile configuration and placement.
Installation Process
The installation sequence for screw piles on sloping sites typically includes:
- Site Preparation: Clear vegetation and loose debris without extensive grading.
- Pile Layout: Mark precise pile locations based on engineering drawings.
- Pre-drilling (if required): Create pilot holes in dense soils or rocky layers.
- Screw Pile Installation: Mechanically drive piles to the required depth and torque.
- Load Testing: Verify capacity compliance through field load testing where specified.
- Structure Attachment: Attach structural components using custom or standard brackets designed for the project.
Screw piles provide a stable, adaptable, and sustainable foundation solution for construction projects on sloping and uneven land. Through detailed soil assessment, strategic engineering design, and precision installation, screw piles offer long-term structural performance while reducing environmental impact and project timelines. Careful planning and the use of certified professionals ensure the full advantages of screw pile technology are realized, supporting safe and efficient development on challenging terrains.
